SACER DESIGN AND VALIDATION CAPACITY

Design department is responsible for 3D/2D design of the e-Actuators and components
Collaboration with PE and CAE to ensure technical optimisation proposal can achieve the certain target
Modular Design / Customized interface

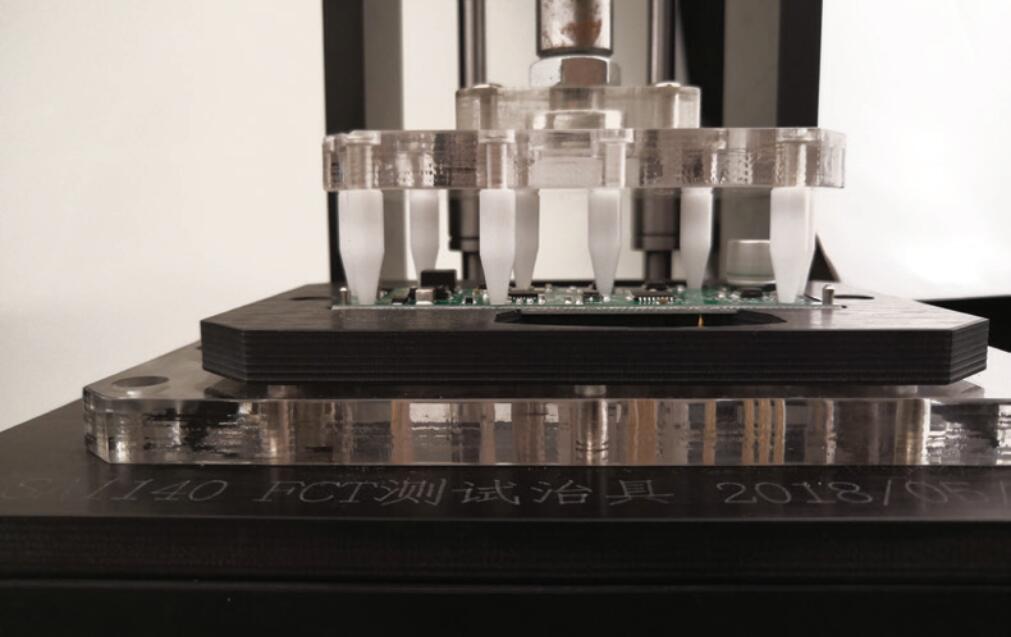

Standardised PCBA design configuration
FEA – Finite Element Analysis
Housing TMF
Parts heat distribution & transforming
Support vibration fatigue
Machine model & harmonic response
360° analysis of all risks. Provide durable engineering validation testing methods to guarantee performance and lifetime

ITEM	TESTING NAME	TARGET
1	HALT testing	Thermal cycle (high temperature & low temperature cycle)
2	Vibration testing	Sine sweeping frequency
3	Corrosion testing	300hrs salt spraying testing
4	RT durability testing	2000hrs (3 million duty cycle) RT full load durability testing
5	High/low temperature ageing testing	400hrs +135˚C heat (-40˚C) testing within OVEN room
6	Water proof testing	IEC60529-IP65 water directly crash testing
7	Drop testing	2m height drop
8	EMC	Radiated emission / conducted emission / Harmonic / flicker
9	ROHS & REACH testing	CCC/EC certification
10	Individual Parts DV testing	According to drawing
11	Vehicle durability	SA1130 more than 100K kilometers real vehicle testing score, SA1150 more than 6 month real vehicle testing
