LCD DISPLAY with Ribbon Flat Cable for Mercedes C/E/CLK/SLK-CLASS 1998-2002(right)
| Item Number | SA1006 |

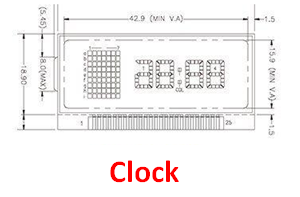

| Glass Dimension | 45.8*22.3*2.2mm |
| Connect Type | Heat Seal, Need heat bonding |
| Applied Position | Instrument Cluster / Dashboard (right LCD) |
| Storage Temperature | -30℃ to 80℃ |
| Operation Temperature | -20℃ to 70℃ |
Difference between SA1006 and SA1005
SA1006
SA1005
LCD Display With Ribbon Flat Cable ( right )
Application
Instrument Cluster / Dashboard ( right )
Model
Mercedes E-Class (W210), CLK-Class (W208), SLK-Class(R170)
Mercedes-Benz W210 E-Class(1995~2000)
Mercedes-Benz S210 E-Class T-Model(1996~2002)
Mercedes-Benz E320(1998~2002)
Additional Information
25 pins on flat cable side with two position holes.Need heat bondig.Change both left and right to get same contrast.Seperae flat cable is also available for sale.ref No.(SA1005 connector,SA1006 connector)
1. LCD display with ribbon cable, 25 PINS on flat cable side with 2 position holes.
2. Change both left and right to get same contrast.
3. Need heat bonding machine to moun on PCB.
4. Seperate flat cable is also avaliable for sale.
5. 100% Brand New product and tested prior to leaving the factory.
