SA1012 - LCD display for Mercedes W203 C-Class

Rating:
100% of 100

LCD display only, without ribbon cables. Application: Instrument Cluster, dashboard Make / Models: Mercedes W203 C-Class Same IC Driver with OE . Do not need Soldering.

was US$73.00 Special Price US$29.99
Availability: In stock
SKU
SA1012
P.NO
1200200300
  • Buy 10 for US$24.75 each and save 17%

LCD Display For Mercedes W203 C-Class

Application

Instrument Cluster, Dashboard

Model

Mercedes C-class , AMG W203 (2000-2007)

[Mercedes C160, Mercedes C180, Mercedes c180 Kompressor, Mercedes C200 Kompressor, Mercedes C200 CGI, Mercedes C230 Kompressor, Mercedes C230, Mercedes C240, Mercedes C280, Mercedes C320, Mercedes C350, Mercedes C32 AMG, Mercedes C55 AMGC200 CDI, Mercedes C220 CDI, Mercedes C270 CDI, Mercedes C320 CDI, Mercedes C30 CDI AMG]

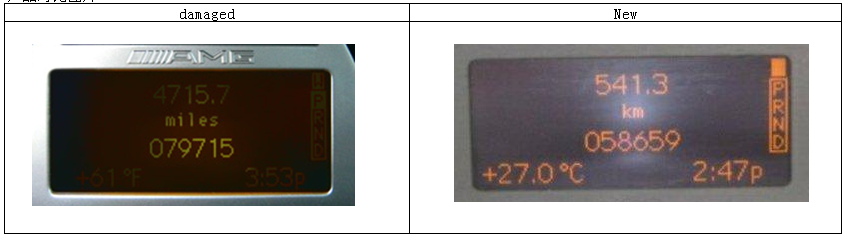

SA1012 contrast fault and solution

1. Problem details

2. LCD details

3. Solution

Incidental, these Bias levels might be different on certain clusters. This will result in less sharp images, or less contrast. If so, they can be slightly adjusted by soldering a resistor to a +5V, ground, or -15V(or -12V) point.





For example, if you got a LCD show contrast fault,

Step 1. Power on the dashboard, measure the voltage of V1 to V5



Step 2. Compare to the design Bais voltage and find out which one is much different.

Step 3. Adjust the measured volt close to Designed BIAS Levels.

For now we want to add V2 more 0.20Volt, it can find for V2 need to add a 2.1K ohm resistor.

Item Number

SA1012
Applied Position Instrument Cluster, dashboard
Operation Temperature -20℃ to 70℃
Storage Temperature -30℃ to 80℃
Connect Type Insert Type
Condition  100% Brand New
Warranty  2 years

1. LCD Display only, Same IC Driver with OE.

2. 100% Brand New product and tested prior to leaving the factory.

3. Fully meet the OE specification and perfectly fit the application.
