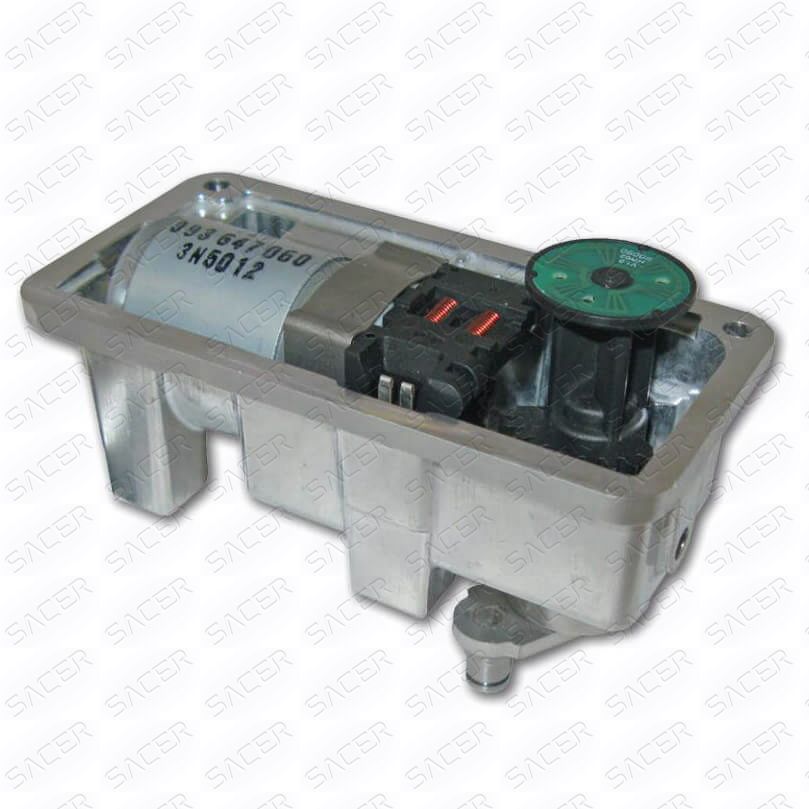

HELLA Garrett G276 Turbo Actuator Gearbox 712120 6NW009420 for Turbocharger 759688-5007S 759688-5005S - SA1130-G276-H19

SA1130-G276-H19 Turbo Actuator Gearbox



The turbo actuator is part of a complete VGT turbo assembly manufactured by Garrett. The original turbo actuator has a short lifespan and therefore an extremely high failure rate. This actuator often cannot be purchased separately, and if it breaks, a complete turbo with the actuator assembly must be purchased. The high failure rate is primarily due to wear of the two plastic gears, which creates excessive friction and causes the DC motor to break. Since one of the gears causing this problem is laser-welded inside the gearbox, swapping just the plastic gears and the DC motor is not possible. Therefore, Sacer offers a remanufactured solution in the form of a completely new actuator gearbox. Completely new, patented, and easy to install.



Turbo Part Number:



759688-5007S 759688-5005S



GARRETT NO.:



712120



Hella NO.:



6NW009420



Control Mode:



Version D (Digital/Intelligent)



For Brand:



Mercedes-Benz



For Model:



Mercedes-Benz Sprinter 2006-2018



Mercedes-Benz C-Class 2007-2014



Mercedes-Benz M-Class 2005-2011



Advantages:



1. Independent software design



2. Includes independent PCBA design



3. Johnson Longlift DC motor



4. Transmission structure with special materials, good wear resistance



5. The entire unit has passed high-speed aging tests (including durability, high and low speeds) Low temperatures, vibration, electromagnetic compatibility, etc.)



6. The angle can be customized via programming.



Warranty:



1-year warranty. 100% qualified testing and inspection before shipping.
