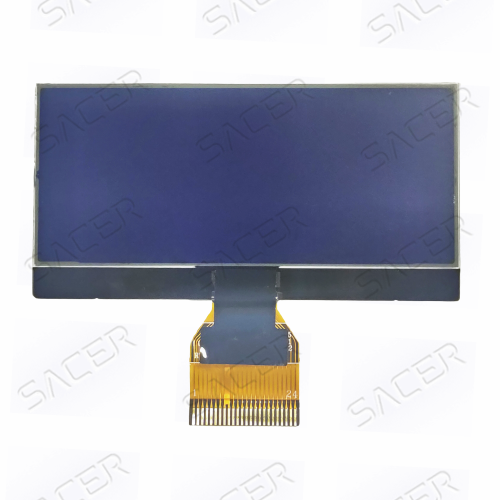

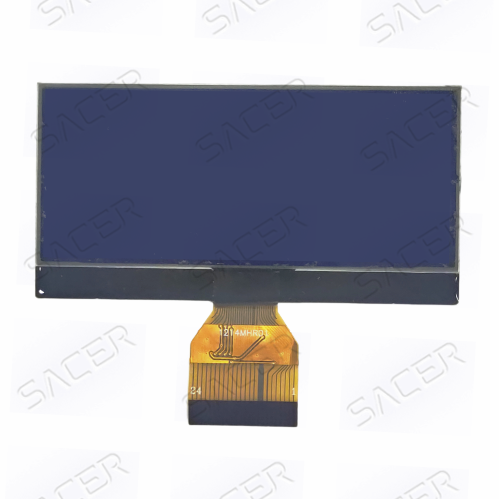

LCD display with FPC for Mercedes A/B class 7V & 8V (Improved Version)
| Item Number | SA1214-1 |
| Glass Dimension | 97.5*50.0*2.0mm |
| Connect Type | Plug-in(no need soldering) |
| Connector Type | FPC |
| Applied Position | Instrument Cluster / Dashboard |
| Storage Temperature | -30℃ to 80℃ |
| Operation Temperature | -20℃ to 70℃ |
| Warranty | 1 year |
Failed contrast problems
How to adjust a SA1214-1 contrast problem(when you use on 8V dashboard,you also need to adjust voltage)
Step 1. Connect/assembly on a SA1214 or SA1215

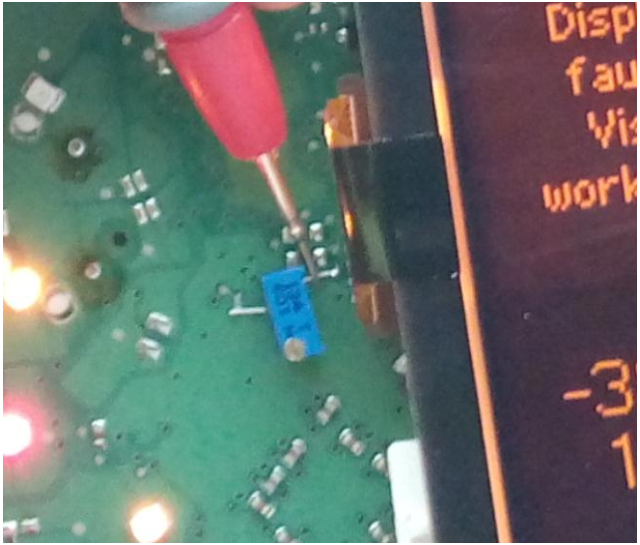

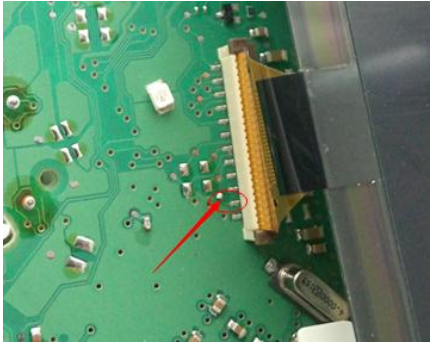

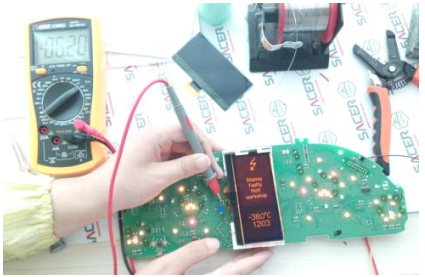

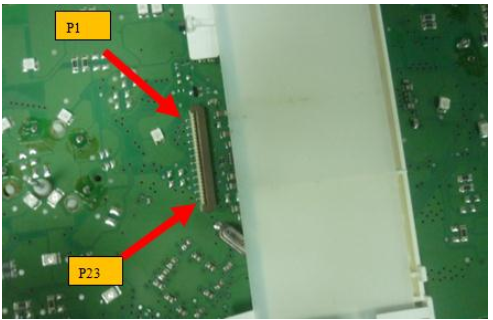

Step 2. Use a Multi-meter to measure the voltage value at Pin 21

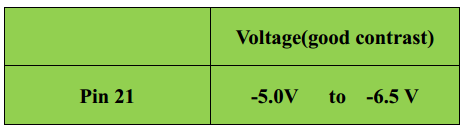

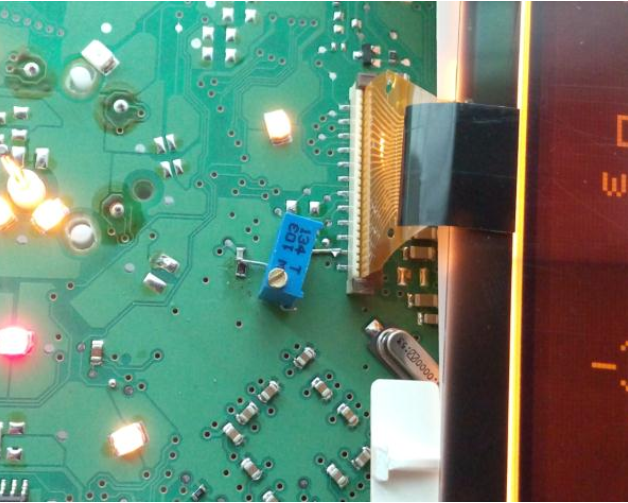

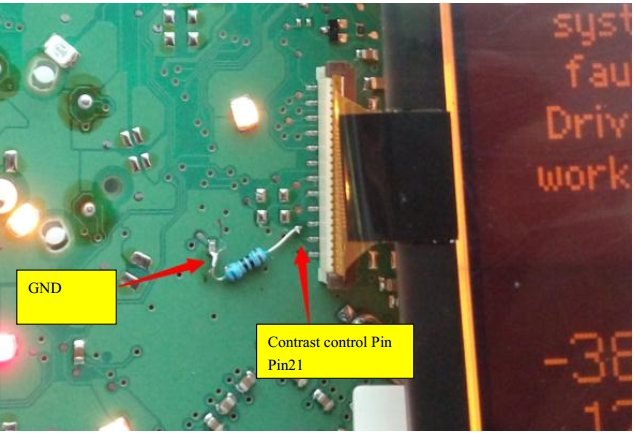

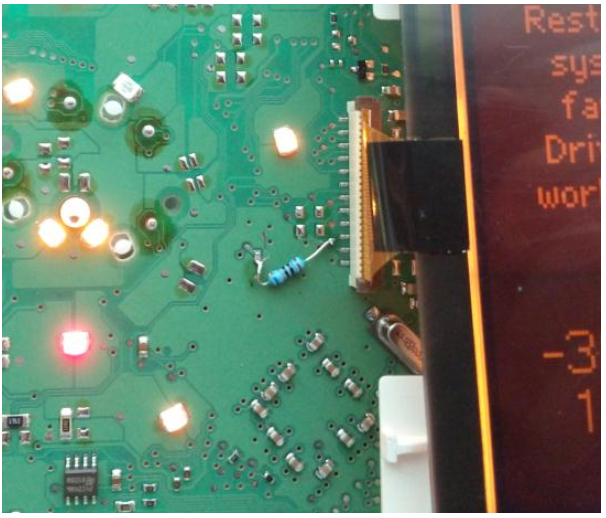

We have try to use a 820 Ohm resister to pull down the voltage to between -5.00V to -6.50V, then the contrast is good.
if you know this, you can use a SA1214-1 on 7V or 8V cluster.
SA1214-1 LCD Display With FPC For Mercedes A / B Class ( dashboard 7V & 8V )
Application

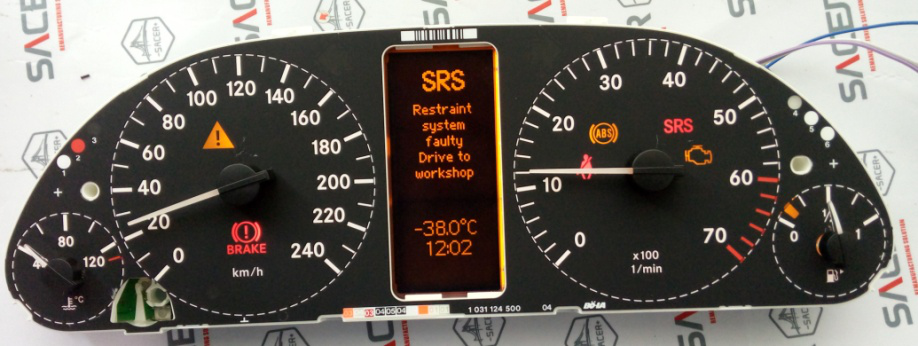

Instrument Cluster / Dashboard 7V & 8V
Model
Mercedes A-Class W169 / C169 (models from 2004 to 2012);
Mercedes B-Class W245 (models from 2005 to 2011).
1. COG LCD screen with flex connector.
2. Plug-in and play, easy installation
3. Perfect brightness and contrast
4. 100% Brand New and full OQC before delivery.
