LCD Display for Audi A6 (4F) (2004-2011) / Q7 (4L) (2006-)

Rating:
100% of 100

Application: ACC unit, Without any cable. Make / Models: Audi A6 (4F) (2004-2011) / Q7 (4L) (2006-) Exception / Problem Areas: Same as OE

US$10.42
Availability: In stock
SKU
SA1240
P.NO
1200104000
Quantity(Pcs)Unit Price(US$)
1+10.42
10+9

For more quantity price, please contact our customer service.

Application&Models

LCD Display For Audi A6 (4F) (2004-2011) / Q7 (4L) (2006-)

Application

ACC Unit

Model

Audi A6 (4F) (2004-2011) / Q7 (4L) (2006-)

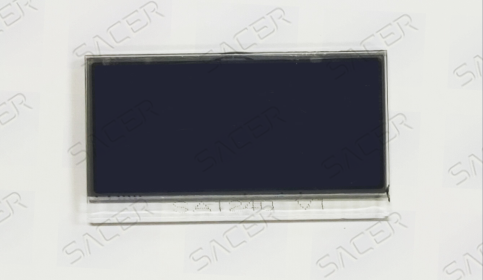

Front :

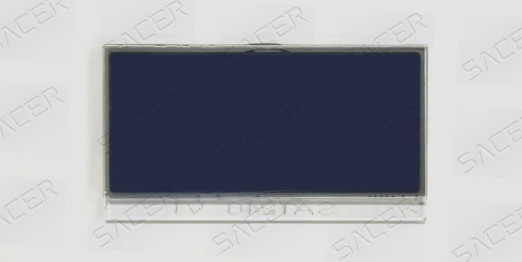

Back :

Specifications

Item Number SA1240
Applied Position ACC Unit
Dimension 45.0*25.0*2.5mm
Connect Type Zebra Paper to the Main PCB
Storage Temperature  -30℃ to 80℃
Operation Temperature -20℃ to 70℃
Condition  100% Brand New
Warranty  2 years

Features

1. There are two models for Audi A6/Q7 ACC unit :

    Model 1 (grey housing) : LCD with flat cable, Sacer produce flat only, part no. SA9038.

    Model 2 (black cover): LCD only, SA1240. Please note SA1240 can not use on Model 1.

    We suggest you to replace the SA1240 from two sides together to get the same contrast.

2. Without any cables, need to connect with zebra to the main PCB at customer side.

3. Fully meet the OE specifications and perfect fit the module.

4. 100% Brand New product and tested prior to leaving the factory.
