LCD display for Nissan radio Daewoo/ QASHQAI /Juke/ NAVARA

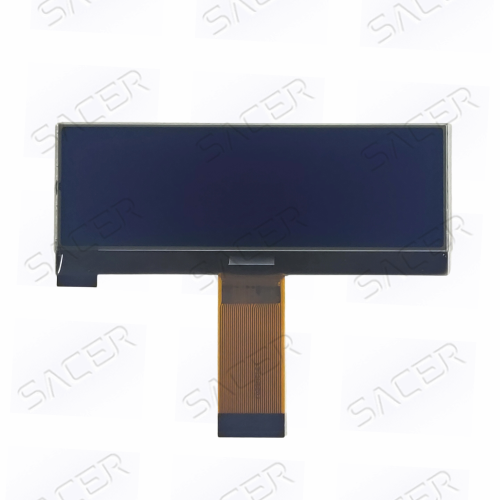

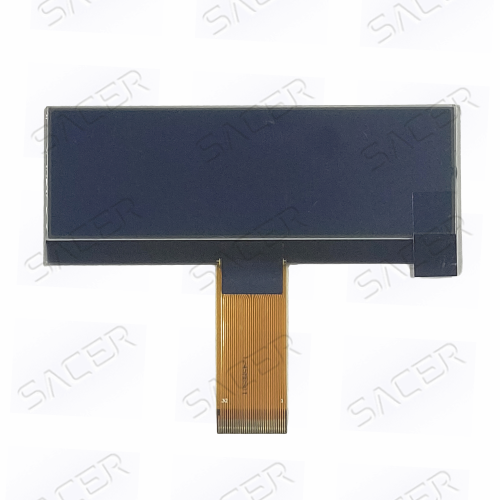

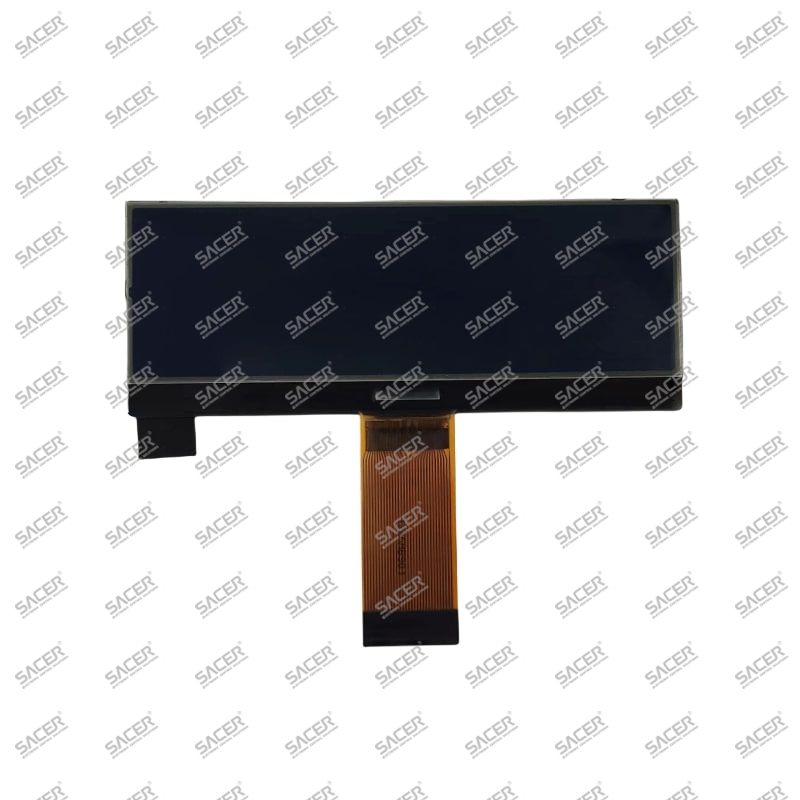

SA1245 - LCD display for Nissan radio

Application

Radio unit

Make/Models

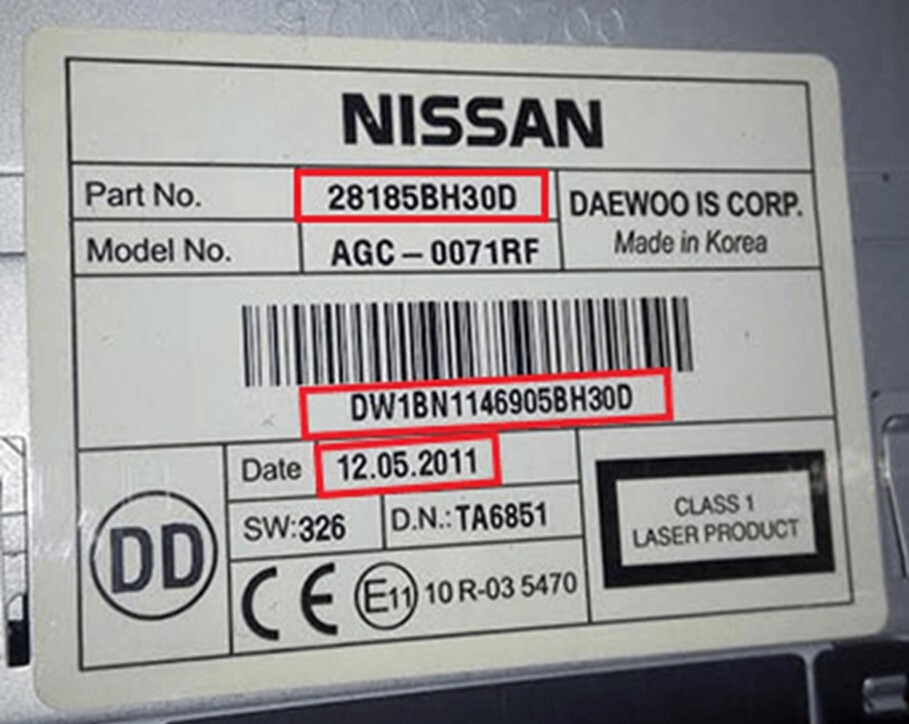

Year	Make	Model	Part Nr.	Model Nr.
2010~2011	Juke JPN MAKE	F15	28185BV80A	/
2010~2011	Juke RUS MAKE	F15	281851KA2A 28185BH30C	/
2010~2011	Juke UK MAKE	F15E	28185BH30C 28185BH30D	/
2010-2011	Note ERE MAKE	E11E	28185BH30A 28185BH30C	/
2006~2013	QASHQAI	J10E	28185JD05A 28185BH30D	AGC-0071RF
2010~2012	QASHQAI+2	JJ10E	28185BH30C 28185BH30A 28185BH30D	/
2010-2011	NAVARA SPAIN MAKE	D40M	28185BH30D	/
2010~2011	NV200 SPAIN MAKE	M20M	28185BH30A 28185BH30B	/
2011-2014	NV200 Korea MAKE	Evalia	28185BH30D	AGC-0071RF
2010~2011	PATHFINDER	R51M	28185BH30D	/
2013~2016	TERRANO	D10	28185BH30D	/
2010~2011	TLIDA	C11X	28185BH30D	AGC-0071RF
2010~2011	TLIDA SEDAN	SC11X	/	/

Specifications

1.

Item	Value
Display type	ISTN(BLUE)
Working Temperature	-20℃ to 70℃
Storage Temperature	-40℃ to 85℃
Viewing Direction	12 o’clock(after assembled)
Glass dimension L*W*T(mm)	74.7*58.2*2.2
FPC Size(mm)	40* 16.5* 0.3
Polarizer type	Transmissive /Negative
LCD Driving Voltage	10.0V
Connector type	COG+FPC
RoHS Compliant	√

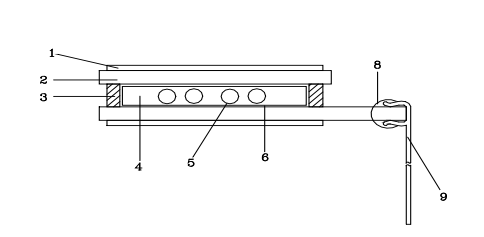

2. Construction of LCD ( normal STN and OCG type )





1． Polarizer

2． ITO Glass

3． Main Seal

4． Liquid Crystal

5． Spacer

6． PI

7. End Seal

8. UV Curing Resins

9. PIN

COG: means Chip On Glass

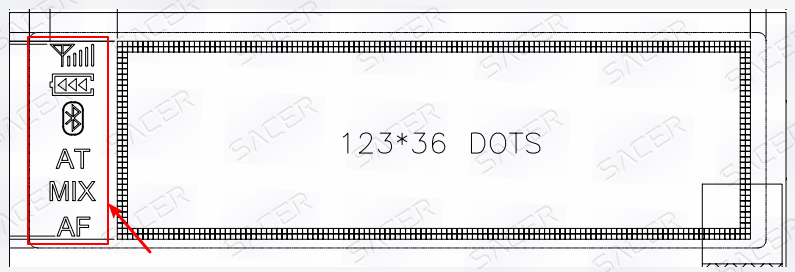

Dot matrix type and Character type

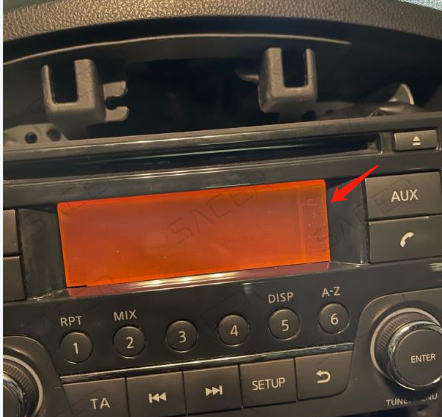

8. Installation

The screen will not be displayed if it is installed upside down.(wrong installation）

Right installation



Features:

a) Redesign and quality improved

b) Wide working temperature range

c) Wide perspective

d) Quick response

e) 100% full OQC before package
