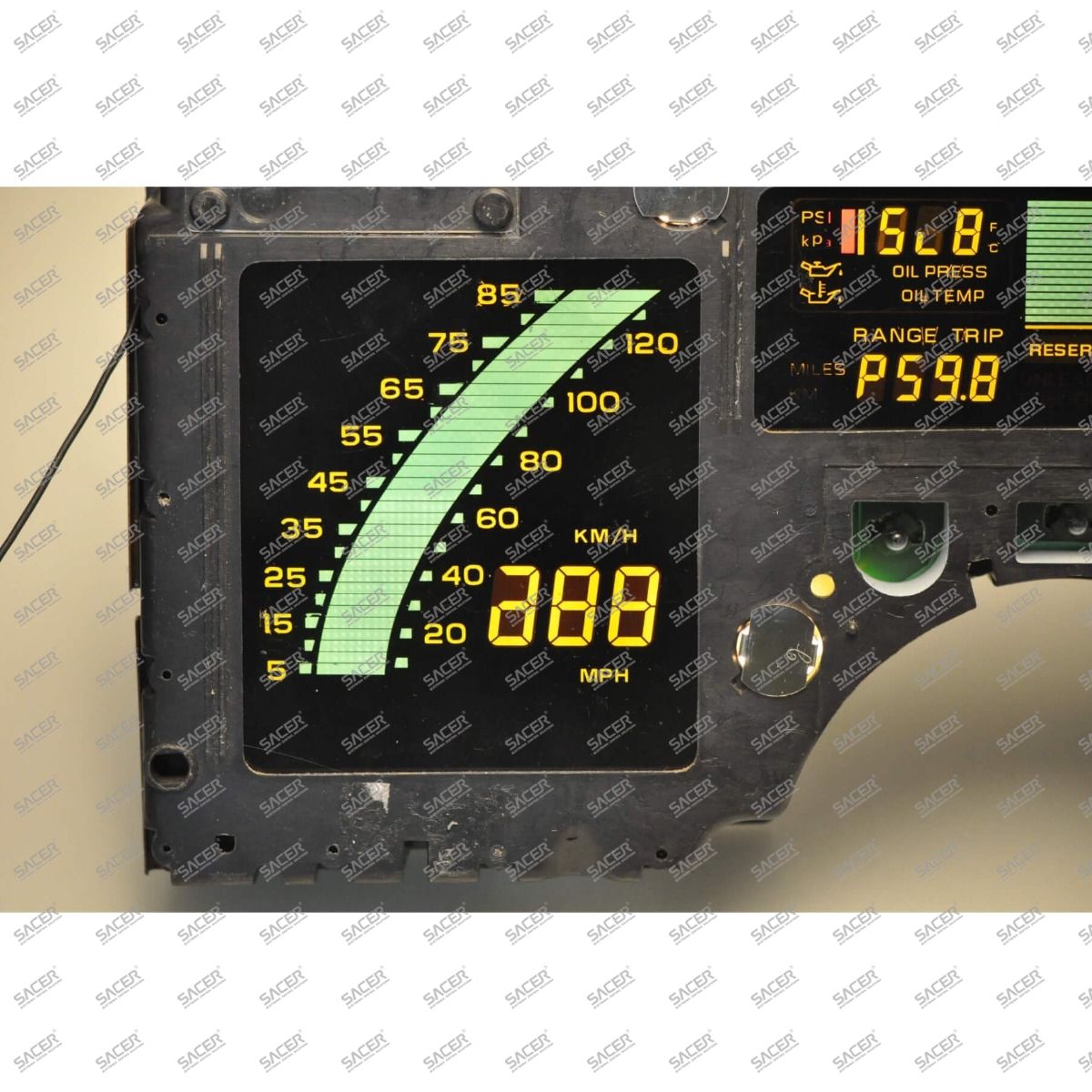

LCD display for Chevrolet Corvette 1984-1989 (Left Display)

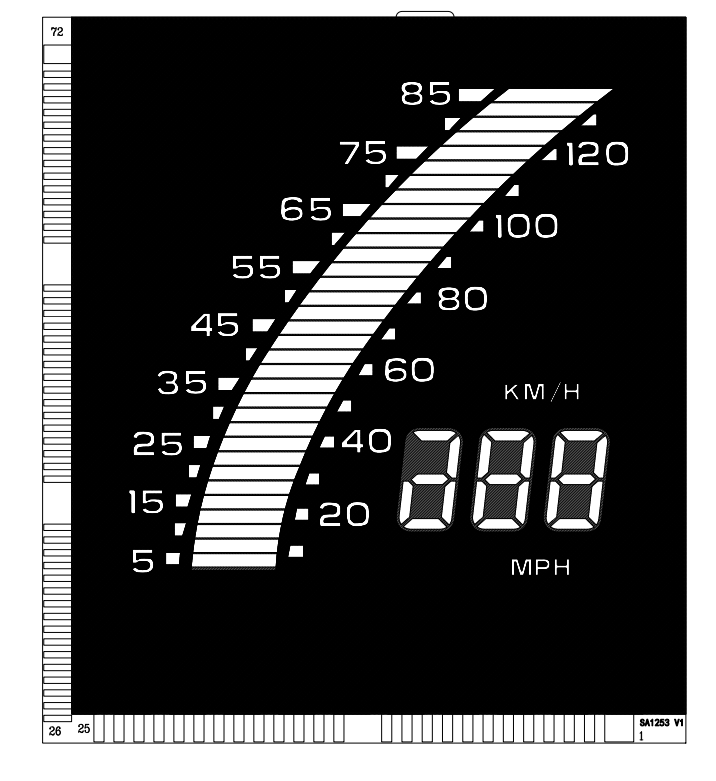

SA1253 - LCD display for Chevrolet Corvette 1984-1989 (Left Display)

Application

Instrument Cluster / Dashboard

Model

Chevrolet Corvette 1984-1989

Description

This is Left Display.
The Right Display: SA1251
The Middle Display:SA1252

1       Features

a)  Redesign and quality improved

b)  Wide temperature

c)  100% test pass before package

«  LCD Specification

Item	Value
Working Temperature	-20℃ to 70℃
Storage Temperature	-40℃ to 85℃
Viewing Direction	12 o’clock(after assembled)



2       View direction (12 o’clock)

3       Construction of LCD ( normal STN and OCG type )

1．Polarizer 2．ITO Glass 3．Main Seal 4．Liquid Crystal 5．Spacer 6．PI 7． End Seal 8． UV Curing Resins 9． PIN

4       application method：Silicone Rubber type

5       Silicone Rubber Type

Silicone rubber type normally is connect by a silicone rubber that connect wire inside, and for this kind of display, it is total glass.

a)        Start use

Step 1.       Clean the connect part on both display and dashboard (or PCB), normally use alcohol or CRAMOLIN spraywash.

Step 2.       Put on the display and confirm direction is OK.

b)        Notice

1)      If pixel miss after assembly, please open and check if connect well.
