LCD Display for Fiat 500 (2014~2017) COG-VLIT 1592-02

WARNING
Please let us know the code on your display, before purchasing

SA1259 - LCD display For Fiat 500 (2014~2017)

Application

Instrument cluster

Model

Notes	Year	Model	Manufacturers	Instrument cluster number
	2014~2017	Fiat 500	Fiat	503015214206 735590736 D369 27/11/13 COG-VLIT1592-02 555 001 312 600
				503015214207 735590736 D369 03/06/14 COG-VLIT1592-02 555 001 312 600 20140506
				503015214307 735590740 D369 16/06/14 COG-VLIT1592-02 555 001 312 600 20140411
				503015214207 735590736 D369 24/06/14 COG-VLIT1592-02 555 001 312 600 20140503
				503015214207 735590736 D369 28/06/14 COG-VLIT1592-02 555 001 312 600 20140508
				503015214207 735590736 D369 09/07/14 COG-VLIT1592-02 555 001 312 600 20140519
				503015214207 735590736 D369 14/07/14 COG-VLIT1592-02 555 001 312 600 20140529
				503015214208 735624418 D369 30/07/14 COG-VLIT1592-02 555 001 312 600
				503015214208 735624418 D369 25/08/14 COG-VLIT1592-02 555 001 312 600 20140630
				503015214210 735628286 D369 05/02/15 COG-VLIT1592-02 555 001 312 600 20150113

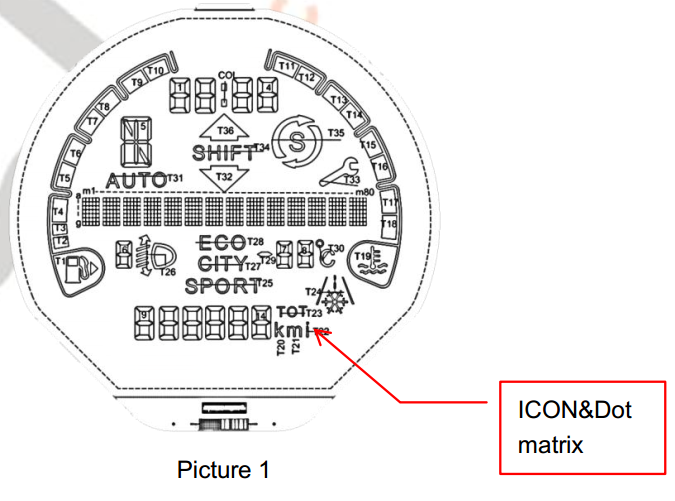

Dot matrix type and ICON type

1       Features

a)        Redesign and quality improved

b)        Wide temperature

c)         Wide perspective

d)        Quick response

e)        100% test pass before package

Item Number	SA1259
Applied Position	Instrument cluster
LCD Type	ISTN(BLUE)
Connection Type	COG+FPC
View direction	12 o’clock(after assembled)
Glass dimension L*W*T(mm)	φ75.2mm*2.8mm
Polarizer type	Transmissive /Negative
LCD Driving Voltage	5.0V±0.2V
Working Temperature	-30℃ to 80℃
Storage Temperature	-40℃ to 90℃
RoHS Compliant	√

Note：COG: means Chip On Glass

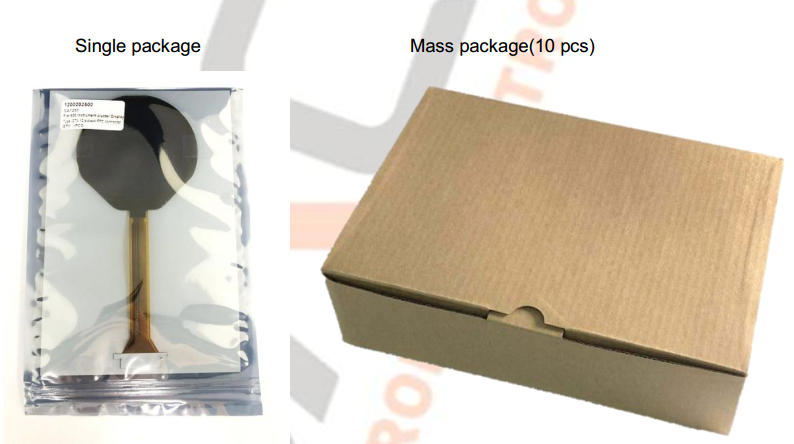

Packing
