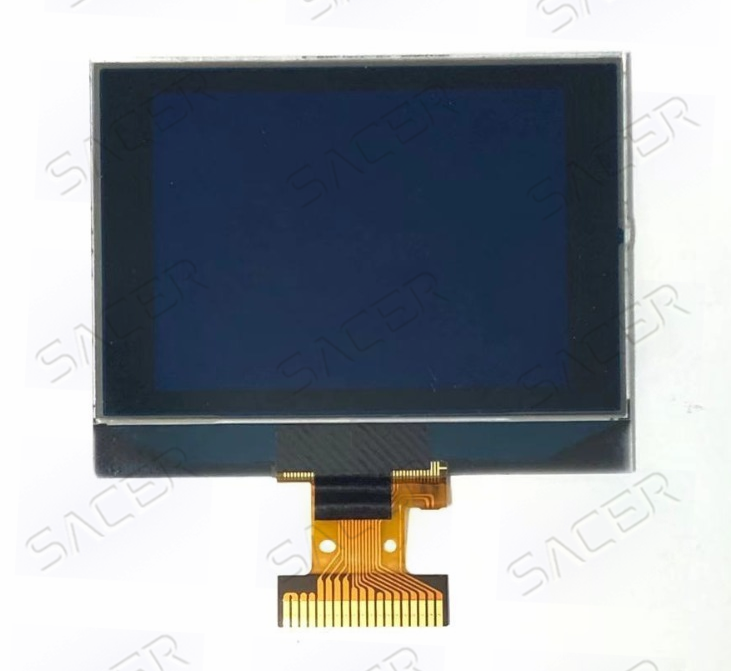

Half Size LCD Display for VW Golf V 1K/Touran1T/Passat3C(2003-2010)/Seat(2003-)/Skoda (2003-)
SA1260 - LCD display for VW Golf 5 1K/Touran1T/Passat3C(2003~2010)/Seat(2003-)/Skoda (2003-)
OEM manufacturer number : 92290206
Make/Models
| Year | Model | Manufacturers | Part Nr. | Engine(ref.) |
| 2003~2008 | VW Golf 5 | VDO | 1K0920950K | 1.9 TDI |
| 2006~2011 | VW JETTA | VDO | 1K0920963B | 2.0 TDI |
| 2004~2010 | VW Caddy Ⅲ | F15E | 2K0920844C | 1.9 TDI |
| 2003~2009 | VW Touran(1T1,1T2) | VDO | 1T0920863E | 1.9 TDI 2.0 L |
| 2005~2010 | VW Passat | VDO | 3C092096K | / |
| 2007~2011 | VW Tiguan | VDO | 5N0920950D | / |
| 2003~2006 | Seat Toledo | VDO | 5P0920923AX | 1.9 TDI |
Description
1 Features
a) Redesign and quality improved
b) Wide working temperature range
c) Wide perspective
d) Quick response
e) 100% OQC pass before package
« LCD Specification
Item | Value |
Display type | ISTN(BLUE) |
Working Temperature | -30℃ to 70℃ |
Storage Temperature | -40℃ to 85℃ |
Viewing Direction | 12 o’clock(after assembled) |
Glass dimension L*W*T(mm) | 63.1*49.5*2 |
Polarizer type | Transmissive /Negative |
LCD Driving Voltage | 13.65V |
Connector type | COG+FPC |
RoHS Compliant | √ |

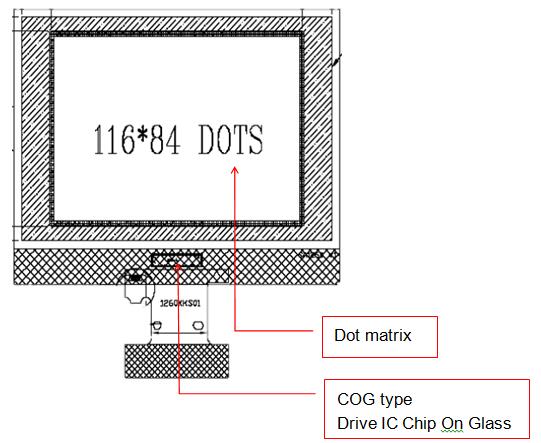

« Dot matrix type and Character type

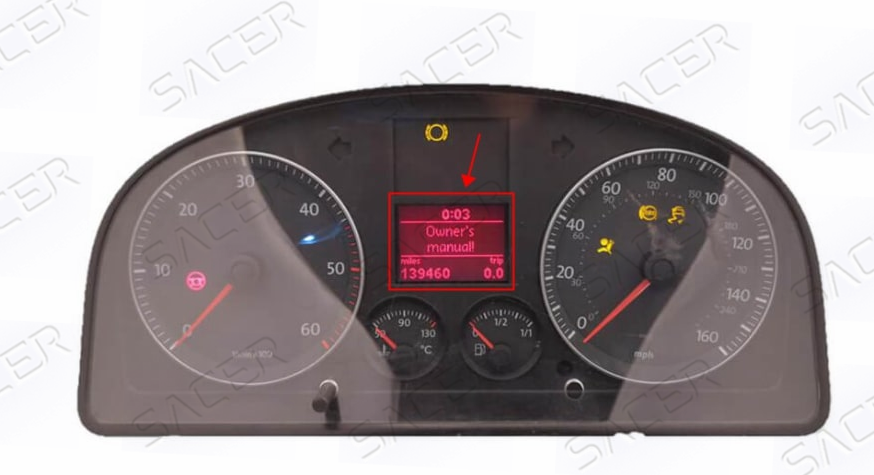

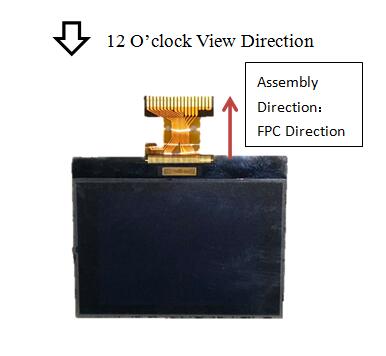

« Assembly direction for the display.

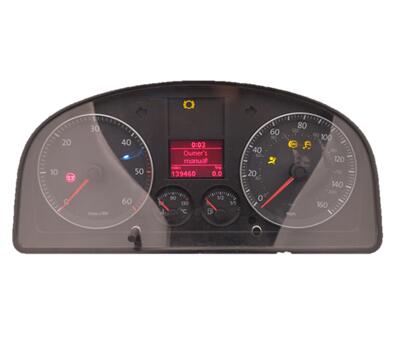

Instrument Cluster | LCD |
|
|

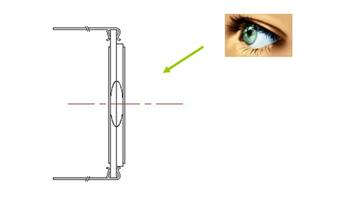

2 View direction (12 o’clock)

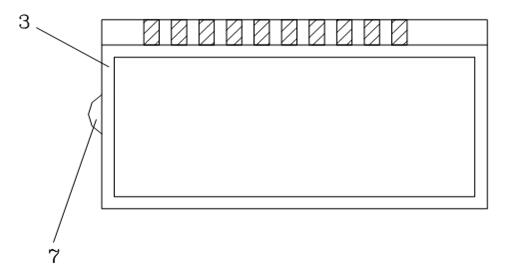

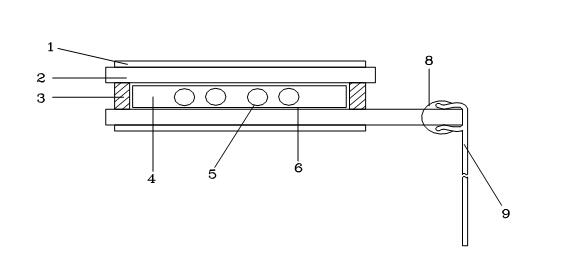

3 Construction of LCD ( normal STN and OCG type )
| 1．Polarizer 2．ITO Glass 3．Main Seal 4．Liquid Crystal 5．Spacer 6．PI 7 . End Seal 8 . UV Curing Resins 9 . PIN |
|
|

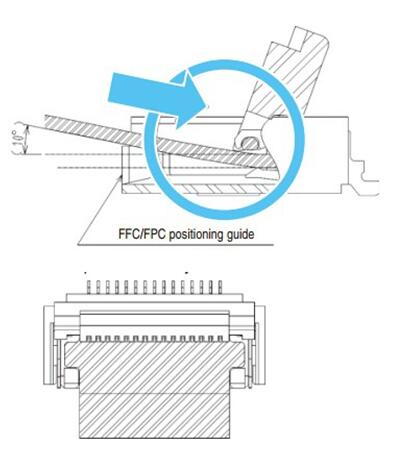

4 application method：Insert type

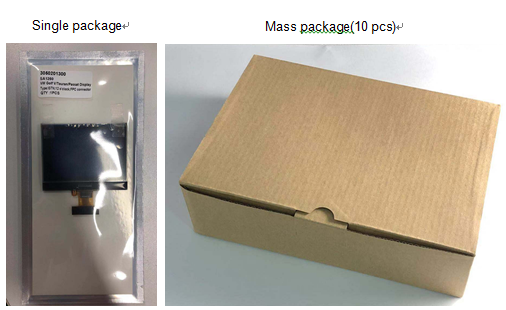

5 packing
