Full size LCD Display with FPC For VOLKSWAGEN GOLF V/TOURAN/PASSAT (models after 2003) and SEAT (some models after 2004)(Thickness 2mm)
WARNING: Please let us know the code on your display, before purchasing

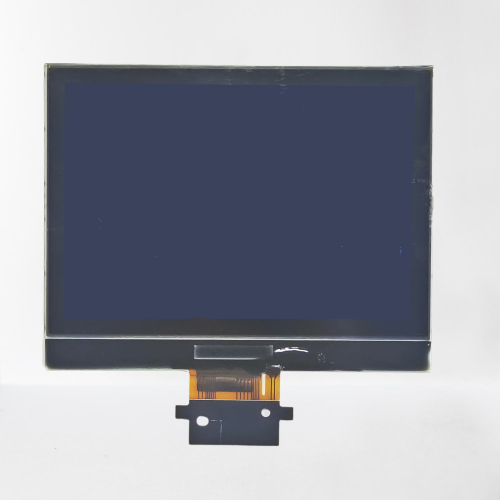

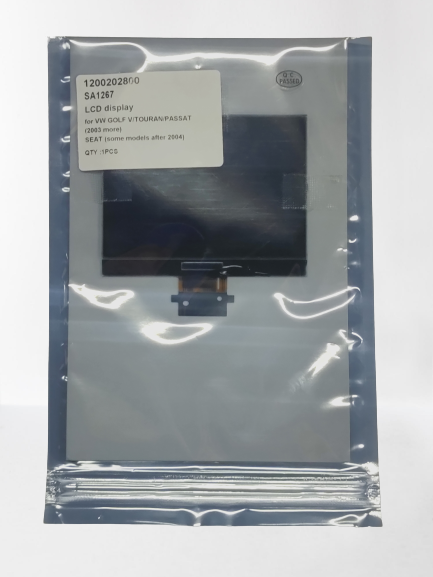

SA1267 - LCD Display with FPC For VOLKSWAGEN GOLF V/TOURAN/PASSAT (models after 2003) SEAT (some models after 2004)
Application

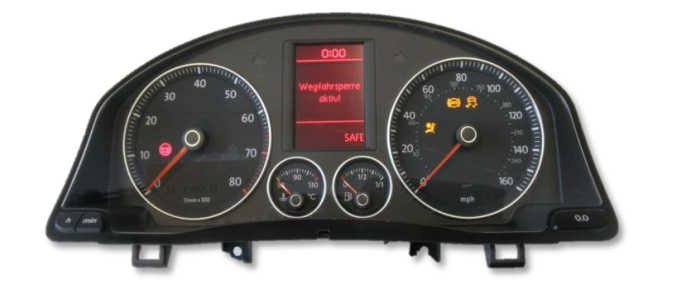

Instrument cluster
Model

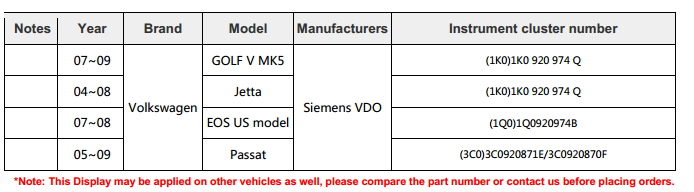

VOLKSWAGEN GOLF V/TOURAN/PASSAT (models after 2003)
SEAT (some models after 2004)

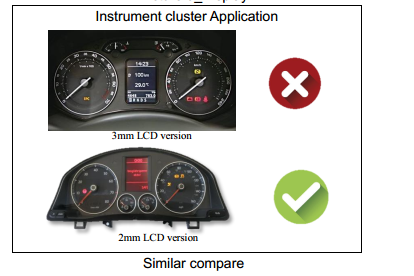

(Thickness of the glass:2mm )
1 Features
a) Redesign and quality improved
b) Wide temperature
c) Wide perspective
d) Quick response
e) 100% test pass before package
| Item Number | SA1267 |
| Applied Position | Instrument cluster |
| LCD Type | ISTN |
| Connection Type | FPC |

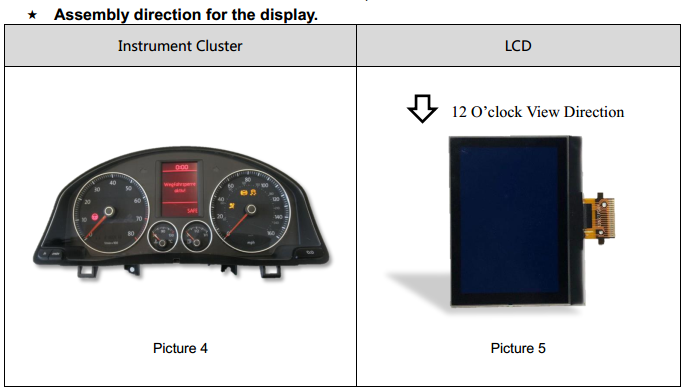

| View direction | 3 o’clock(after assembled) |
| Glass dimension L*W*T(mm) | 85mm*67.2mm*2mm |
| Dots | 120*176 |
