SA1004-2 - LCD Display With FPC For central dashboard of Peugeot 407 (Improved Version)

Rating:
100% of 100

LCD screen with FPC. An improved version Application: Instrument Cluster, dashboard Make / Model: Peugeot 407 Plug-in, do not need soldering.

was US$46.05 Special Price US$18.73
Availability: In stock
SKU
SA1004-2
P.NO
1200202100
  • Buy 10 for US$15.49 each and save 17%

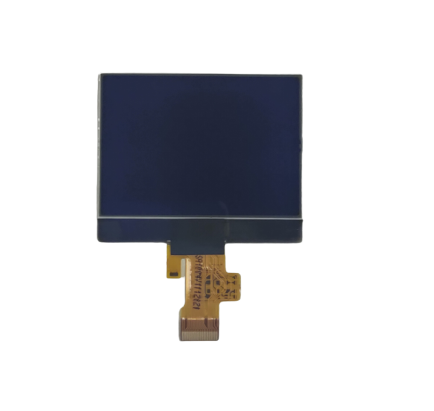

LCD Display With FPC. It is the improved version of SA1004

Application

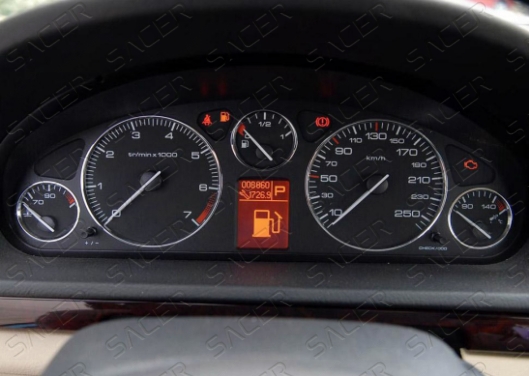

Instrument Cluster / Dashboard

Model

Peugeot 407 (2004- 2006)

Please note: This display only fits for the central dashboard of Peugeot 407, unlike the screen fitting for graphic information unit of Peugeot 307, 408 and 407. Please be sure you find and purchase the correct one. If you have any questions, just leave your message to us. Our sales team will reach you within half an hour.

Item Number SA1004-2
Glass Dimension 57.5*48.0*1.7mm
Connect Type Plug-in
Applied Position Instrument Cluster / Dashboard
View Angle 12:00 / 9:00
Storage Temperature  -30℃ to 80℃
Operation Temperature -20℃ to 70℃
Warranty  2 Years European Warranty

1. Self-developed, fully meet the OE specifications and perfect fit the module.

2. Same TAB IC driver as OE. Insert the FPC into the socket on Instrument cluster.

3. Sacer could seperately provide the LCD display and  the FPC  for you.

4. 100% Brand New product and tested prior to leaving the factory.

Improved Version

1. Self-developed -- All new design, equal to OE contrast, Perfect brightness and superior color.

2. Better Quality  -- IC chip is protected by black epoxy resin, it's a circuit protection for quality improved.

3. Easy To Use -- FPC is 3 mm longer than the original one, makes it much easier to be connected.

4. Quality Garantee -- 100% Brand New product and come with a two years European Warranty.

5.Good display effect--12 o'clock and 9 o'clock direction of view. Perfect brightness, Superior color.

6.Wide operating temperature range--Compared to Origin Sample has good Display on temperature test, -20℃ to 70℃.

The reason why  the product is not displayed

1.Custormer's model and year of car don;t  match our product .

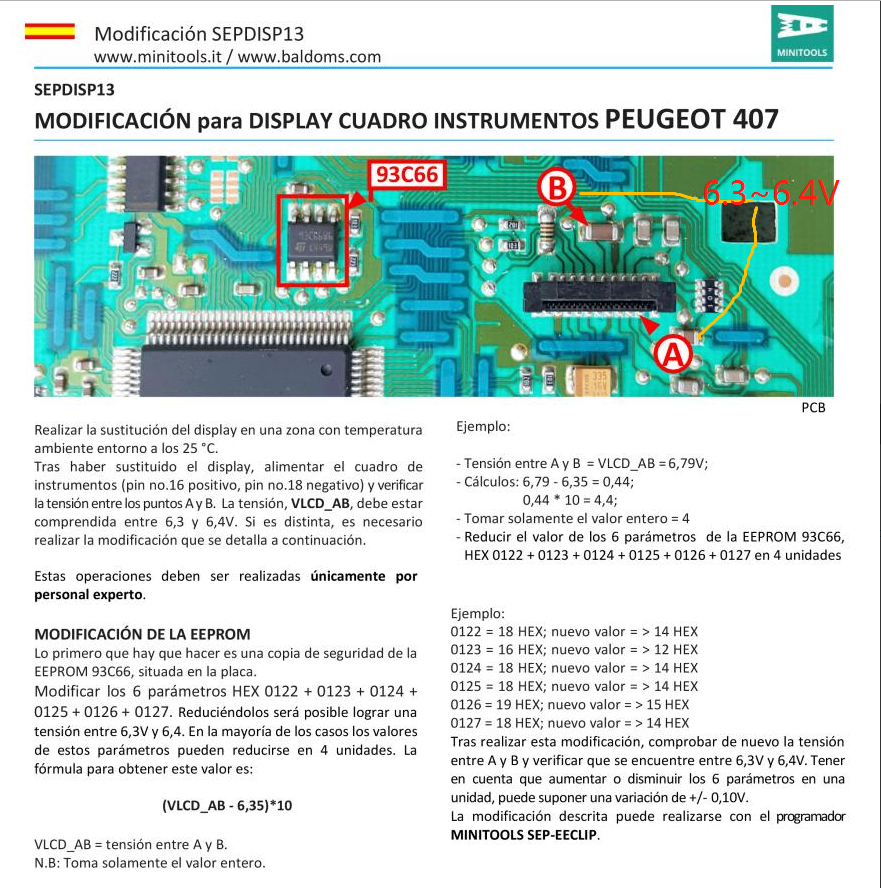

2.The voltage of the instrument cluster should be controlled within 6.3-6.4 volts.

Please note that If your product cannot  displayed ,contact us fist  and provide us with the model year as well as the voltage of instrument cluster .

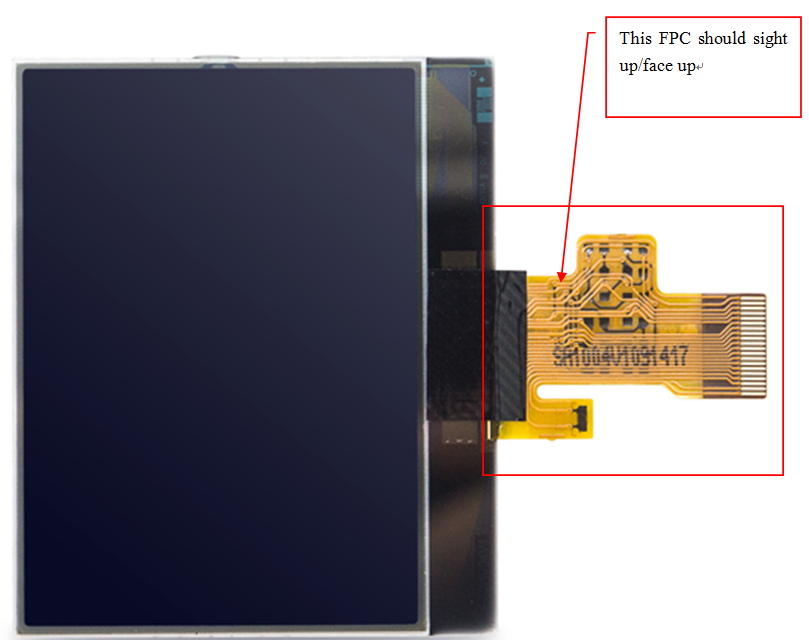

installation instructions

 Alignment plug can be quickly installed.
