LCD Display For Chevrolet Corvette Instrument Cluster 1984-1989 (Right Display)

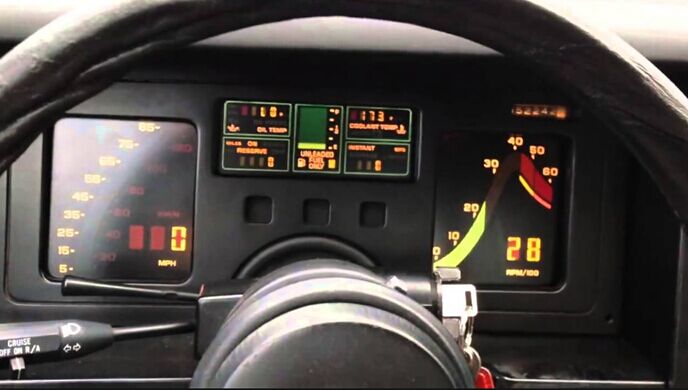

Car Make / Model: Chevrolet Corvette 1984-1989 Application: Instrument cluster/Dashboard

US$132.16
Availability: Out of stock
SKU
SA1251
P.NO
1200104900

Application&Models

SA1251 - LCD Display For Chevrolet Corvette Instrument Cluster 1984-1989 On Right

Application

Instrument Cluster / Dashboard

Model

Chevrolet Corvette 1984-1989

Features

Description

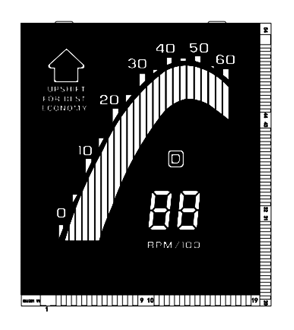

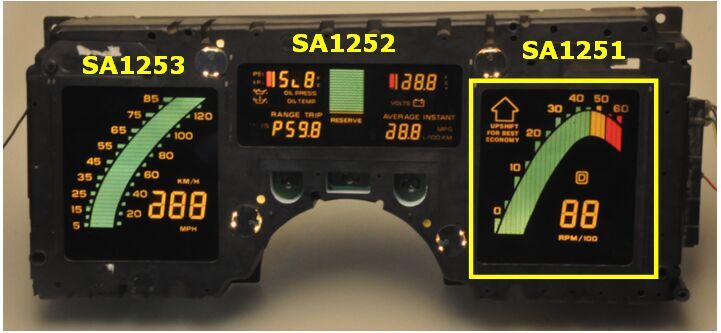

This is Right Display.
The Left Display: SA1253
The Middle Display:SA1252

1       Features

a)  Redesign and quality improved

b)  Wide temperature

c)  100% test pass before package

«  LCD Specification

Item

Value

Working Temperature

-20℃ to 70℃

Storage Temperature

-40℃ to 85℃

Viewing Direction

12 o’clock(after assembled)

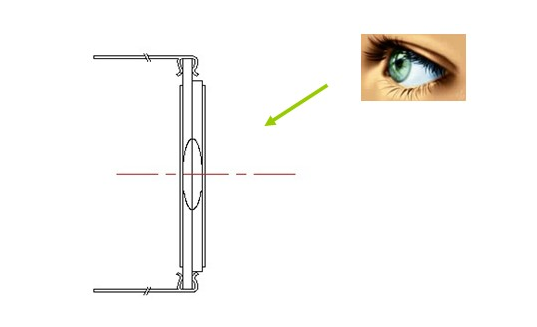

2       View direction (12 o’clock)

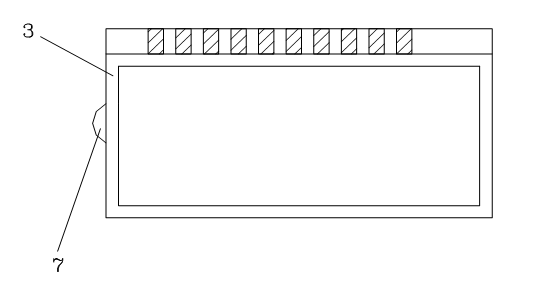

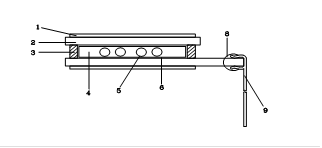

3       Construction of LCD ( normal STN and OCG type )

1.Polarizer

2.ITO Glass

3.Main Seal

4.Liquid Crystal

5.Spacer

6.PI

7. End Seal

8. UV Curing Resins

9. PIN

4       application methodSilicone Rubber type

5       Silicone Rubber Type

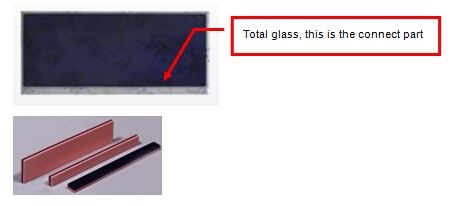

Silicone rubber type normally is connect by a silicone rubber that connect wire inside, and for this kind of display, it is total glass.

a)        Start use

Step 1.       Clean the connect part on both display and dashboard (or PCB), normally use alcohol or CRAMOLIN spraywash.

Step 2.       Put on the display and confirm direction is OK.

b)        Notice

1)      If pixel miss after assembly, please open and check if connect well.
